DataScale SN40L power management

For proper operation of the DataScale® SN40L rack and to prevent issues, be sure you power on and power off the system appropriately and in the correct sequence, as described on this page.

1. Warnings and general notes

The following notices apply to the DataScale SN40L rack.

Some components within the rack work at high voltage. To prevent personal injury and voiding of the warranty, do not attempt to service components except where noted.
To protect the DataScale SN40L rack from interference and to prevent damage to its components, keep the front and rear rack doors closed during standard operation.
To prevent DataScale SN40L rack components from overheating, keep the front and rear of the rack clear of obstructions to allow proper airflow.
Do not power off or reboot the DataScale SN40L rack components during any firmware update procedure. Doing so might damage the DataScale SN40L rack components, and damaged components might not be recoverable. Perform a shutdown or reboot only after a firmware update has been completed.
When the PDUs are physically connected to the datacenter’s power receptacles and power is applied to the rack, all DataScale SN40L rack components begin to power on. The fans of these components initially run at full speed but eventually ramp down after the BMCs finish their boot sequence. Power is not immediately applied to the rack components because the breakers on the PDUs are turned off. You must manually turn on these breakers to begin feeding power to the DataScale SN40L rack components.

2. Process overview

To avoid damage to the system, perform the power-on procedure or a graceful shutdown in the correct order.

  • To turn on the DataScale SN40L rack, follow the detailed steps below. Here’s an overview:

    1. Power on the DataScale SN40L rack by turning on the circuit breakers for each PDU.

    2. Boot the DataScale SN40L-2 RDU modules.

    3. Boot the DataScale SN40L-H host module.

  • To gracefully shut down the DataScale SN40L rack, follow the detailed steps in Gracefully shutting down the DataScale SN40L rack. Here’s an overview:

    1. Shut down the SN40L-H host modules.

    2. Shut down the DataScale SN40L-2 RDU modules.

3. Power on the DataScale SN40L rack

Power on the DataScale SN40L-2 RDU modules before you power on the DataScale SN40L-H host modules, as described in the following steps.

  1. Turn on the six circuit breakers for each PDU.

    When the PDUs are plugged into the datacenter power and you close the circuit breakers, power is automatically applied to the DataScale SN40L rack components. Circuit breakers on PDU shows what a PDU circuit breaker group looks like and shows breaker switch 6 circled. Each PDU has a bank of three circuit breakers grouped together.

    Circuit breaker on PDU
    Figure 1. Circuit breakers on PDU

    The DataScale SN40L-H host modules and DataScale SN40L-2 RDU modules boot into standby mode and wait to be manually powered on. The BMC/service processors are powered on through these devices. The networking equipment in the rack does not go into standby mode; instead, it completely boots when power is established.

    SambaNova uses networking equipment from other suppliers. See Third-party documentation.

4. Boot the DataScale SN40L-2 modules

Boot the DataScale SN40L-2 RDU modules by using SSH to connect to the SN40L-2 BMC, or by sending an API call to the SN40L-2 BMC. This section includes steps for both options.

4.1. Option 1: Use SSH to connect to the SN40L-2 BMC

  1. From a system that has access to the DataScale SN40L rack access network, open a terminal session and use ssh to securely connect to the first DataScale SN40L-2 RDU module in each system.

    See the IP address assignment information in Network administration or use your customer-specific IP assignment worksheet to get the IP address to connect to. The first DataScale SN40L-2 RDU module in each system is as follows:

    System 1: SN40L-2-1 (SN40L-H-1-XRDU0)

    System 2: SN40L-2-5 (SN40L-H-1-XRDU0)

    Here’s an example for system 1 that assumes IP address subnet 10.0.1.0/26 for the access network:

    $ ssh root@10.0.1.25
root@10.0.1.25’s password: <Enter root password>
root@xrdu:~#

  2. Run the following xrduutil command to power on the system:

    root@xrdu:~# xrduutil -U root -P <root_password> poweron

  3. To ensure the DataScale SN40L-2 RDU modules are up before you boot the DataScale SN40L-H host module, check the status of each module by running this command:

    root@xrdu:~# xrduutil -U root -P <root_password> powerstate
Power is on for XRDU_0
Power is on for XRDU_1
Power is on for XRDU_2
Power is on for XRDU_3

4.2. Option 2: Send a REST API call to the SN40L-2 BMC

  1. Generate a token (recommended). If you use the REST API, SambaNova recommends that you use token-based authentication so that plain-text passwords are not sent over the network for REST API commands. See Generate a secure API login token for details.

  2. Run the REST API power-on command for each DataScale SN40L-2 RDU module. Run this command for each DataScale SN40L-2 RDU module in each of the nodes, in no particular order.

    Format:

    $ curl -b cjar -k -H "X-Auth-Token: $token" -X PUT -d '\{"data":"xyz.openbmc_project.State.Chassis.Transition.On"}' https://<SN40L-2_BMC_IP>/xyz/openbmc_project/state/chassis0/attr/RequestedPowerTransition

    Example:

    $ curl -b cjar -k -H "X-Auth-Token: $token" -X PUT -d '\{"data":"xyz.openbmc_project.State.Chassis.Transition.On"}' https://10.0.1.21/xyz/openbmc_project/state/chassis0/attr/RequestedPowerTransition

  3. To ensure the DataScale SN40L-2 RDU modules are up before you boot the SN40L-H, run the following command against each of the DataScale SN40L-2 RDU modules:

    Format:

    $ curl -b cjar -k -H "X-Auth-Token: $token" https://<SN40L-2_BMC_IP>/xyz/openbmc_project/state/chassis0

    Example:

    $ curl -b cjar -k -H "X-Auth-Token: $token" https://10.10.0.25/xyz/openbmc_project/state/chassis0

    After an SN40L-2 RDU module is powered on, the output looks similar to the following:

    {
"data": {
"CurrentPowerState": "xyz.openbmc_project.State.Chassis.PowerState.On",
"LastStateChangeTime": 1591197275103,
"POHCounter": 75,
"RequestedPowerTransition": "xyz.openbmc_project.State.Chassis.Transition.On"
},
"message": "200 OK",
"status": "ok"
}

4.3. Option 3: Mechanical power-on

To power on the SN40L-2 modules:

  1. Press the power button located on the front panel of the SN40L-2 for 5 seconds. This panel is located on the front left side of the system. The power button is identified as item 1 in SN40L front panel (annotated).

  2. Wait for the system LED (callout item 2) to change from a blinking to a solid green light.

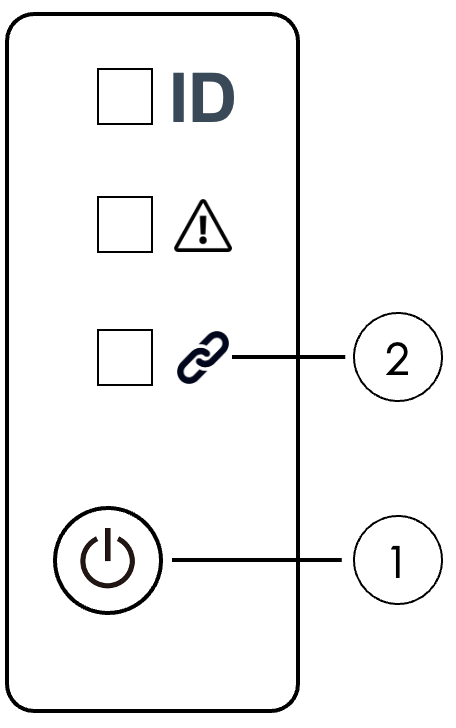

    SN40L front panel
    Figure 2. SN40L front panel (annotated)

  3. When the system LED is no longer blinking, the SN40L-2 modules are being powered on. This power on process can take up to a minute.

  4. Repeat the process for each SN40L-2 module in the SN40L-8 node.

5. Power on the DataScale SN40L-H host module

To ensure that the DataScale SN40L-H host module populates the system device tree properly, power on the host module only after the DataScale SN40L-2 RDU modules are powered on fully.

You can boot the DataScale SN40L-H host module using one of these options:

5.1. Option 1: Mechanical power on

To power on the SN40L-H host module, press the power button located on the front panel of the SN40L-H. This panel is located on the front left side of the server.

Power button

5.2. Option 2: Power on via IPMI

Run the following command from a system that has ipmitool installed and that has access to the SN40L-H host module’s BMC via the access network.

$ ipmitool -I lanplus -H <SN40L-H_BMC_IP_Address> -U root -P <root password> power on

5.3. Option 3: Power on via WebUI

To power on via WebUI your system must meet the following requirements:

  • Access to the DataScale SN40L-H host module’s BMC via the access network

  • One of the following supported web browsers:

    • Chrome (latest version)

    • Firefox (latest version)

Follow these steps:

  1. Open a web browser and enter the IP address of the DataScale SN40L-H host module’s BMC in the address bar.

  2. Log in to the management console by entering the user credentials and click Sign me in.

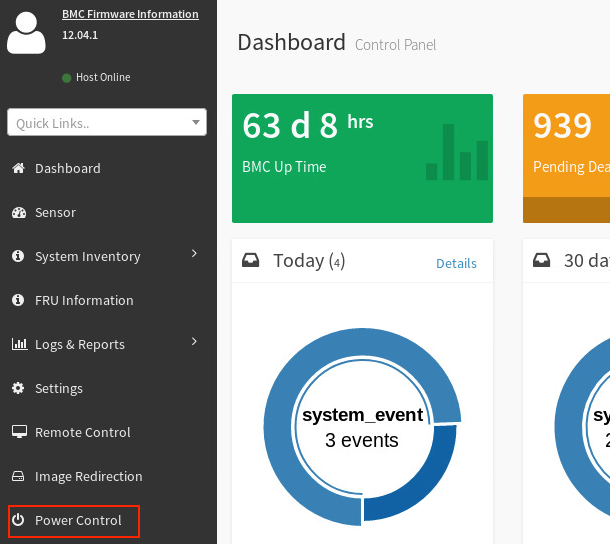

  3. Select Power Control from the BMC dashboard.

    Dashboard]

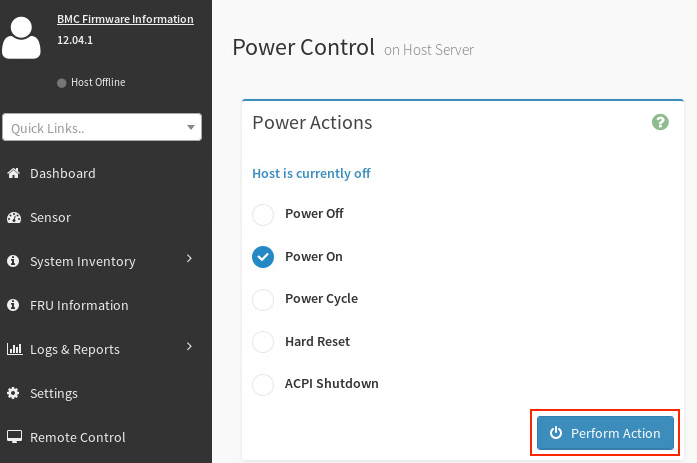

  4. Select the Power On checkbox, and then click Perform Action.

    Power On

  5. Perform this boot sequence for all nodes in the DataScale SN40L rack. The order in which you bring up the nodes does not matter.

6. Gracefully shutting down the DataScale SN40L rack

You can shut down the DataScale SN40L rack but not completely power off the entire rack. Follow these steps for each node in the rack.

6.1. Shut down the SN40L-H host modules

Shut down the SN40L-H host module in each system by using one of the following methods:

6.1.1. Option 1: Shut down from the OS

Log in to the node via ssh as snuser1 and initiate a shutdown command.

$ ssh snuser1@<SN40L-H_OS_IP_Address>
snuser1@SN40L-H1’s password: <password>
$ sudo shutdown

This command does not shut down the system immediately but waits about a minute for users to save their work.

6.1.2. Option 2: Power off via IPMI

  1. Ensure that your system has:

    • Access to the SN40L-H host module’s BMC via the access network

    • The ipmitool installed

  2. Run the following command:

$ ipmitool -I lanplus -H <SN40L-H_BMC_IP_Address> -U root -P <root password> power off

6.1.3. Option 3: Power off via WebUI

To power off via WebUI, your system must meet the following requirements:

  • Access to the DataScale SN40L-H host module’s BMC via the access network

  • One of the following supported web browsers:

    • Chrome (latest version)

    • Firefox (latest version)

Follow these steps:

  1. Open a web browser and enter the IP address of the DataScale SN40L-H host module’s BMC in the address bar.

  2. Log in to the management console with your user credentials and click Sign me in.

  3. Select Power Control from the BMC dashboard.

  4. In the Power Actions screen, select the Power Off checkbox and click Perform Action.

    Power Off

6.2. Shut down the DataScale SN40L-2 RDU modules

Shut down the DataScale SN40L-2 RDU modules in the node using SSH or a REST API call, as follows:

6.2.1. Option 1: Use SSH to connect to the DataScale SN40L-2 BMC

  1. Open a terminal session from a system that has access to the DataScale SN40L rack access network.

  2. Use ssh to connect to the first DataScale SN40L-2 in each node.

    To get the IP address to connect to, see the IP address assignment information in Network administration or use your customer-specific IP assignment worksheet. The first DataScale SN40L-2 RDU module in each system is as follows:

    System 1: SN40L-2-1 (SN40L-H-1-XRDU0)

    System 2: SN40L-2-5 (SN40L-H-1-XRDU0)

    Example for system 1 given IP address subnet 10.0.1.0/26 for the access network:

    $ ssh root@10.0.1.25
root@10.0.1.25's password: <Enter root password>
root@xrdu:~#

  3. Run the xrduutil poweroff command:

    root@xrdu:~# xrduutil -U root -P <root_password> poweroff

6.2.2. Option 2: Send a REST API call to the DataScale SN40L-2 BMC

You can perform the shutdown using the REST API power-off command.

SambaNova recommends that you use token-based authentication so that you do not send plain-text passwords over the network when you use REST commands. See Generate a secure API login token.

  1. Run the REST API power-off command for each of the DataScale SN40L-2 RDU modules in each of the systems.

    Format:

    $ curl -b cjar -k -H "X-Auth-Token: $token" -X PUT -d '\{"data":"xyz.openbmc_project.State.Chassis.Transition.Off"}' https://<SN40L-2_BMC_IP>/xyz/openbmc_project/state/chassis0/attr/RequestedPowerTransition

    Example:

    $ curl -b cjar -k -H "X-Auth-Token: $token" -X PUT -d '\{"data":"xyz.openbmc_project.State.Chassis.Transition.Off"}' https://10.0.1.25/xyz/openbmc_project/state/chassis0/attr/RequestedPowerTransition

  2. Shut down the Juniper QFX5130 high-bandwidth data switch, the Lantronix SLC8000 serial console server, and the Juniper EX series access switch.

    Shut down the Juniper EX series access switch last when you power down the entire DataScale SN40L rack. That switch controls the final access to the system via the network.

    See the product-specific documentation listed under Third-party documentation for details on how to shut down each of these switches.

After shutting down the switches, you can no longer access the PDUs to cycle outlets because their network switch is down. You have to break and manually remake the relevant breakers from the physical PDU to properly cycle power.
