BMC administration

When security patches are available or when BMC firmware updates are required for other reasons, you can perform the tasks in this section. Updating the BIOS is included with this BMC administration topic because the two tasks are usually performed at the same time. The tasks include:

  • Updating the DataScale® SN40L-H host module BMC firmware

  • Updating the DataScale SN40L-H host module BIOS

  • Recovering the DataScale SN40L-H BMC

See View SN40L-H BMC diagnostic information and logs for information on diagnostics.

1. General notes and warnings

Do not remove the admin user account or change this account’s password. This account is needed for password recovery of the DataScale SN40L-H host module’s BMC.
Do not power off or reboot the DataScale SN40L rack components during firmware updates. Interrupting a firmware update can damage the DataScale SN40L rack components. The damaged component might not be recoverable. Perform a shutdown or reboot only after a firmware update has been completed successfully.
Settings on the BMCs do not need modification and remain static unless you are updating the BMCs, collecting diagnostic material, or changing the log in credentials. Do not make configuration changes to the BMC unless you are otherwise instructed.

2. Updating the DataScale SN40L-H host module BMC firmware

If you start the firmware update process and you cancel the process, you must reset BMC. To do that, close the web browser that was logged in to the BMC WebUI, and then log in to the BMC WebUI again before you attempt any administrative operations for the BMC.

2.1. Back up the existing configuration

Before you update the firmware, back up the existing configuration of the DataScale SN40L-H host module. Having a backup might help with recovering the BMC.

To back up the existing configuration, your system must meet the following requirements:

  • Access to the DataScale SN40L-H host module’s BMC via the access network

  • One of the following supported web browsers:

    • Chrome (latest version)

    • Firefox (latest version)

Follow these steps to back up the existing configuration:

  1. Open a web browser and enter the IP address of the DataScale SN40L-H host module’s BMC in the address bar.

  2. Log in to the management console with your user credentials, and click Sign me in.

  3. In the left pane of the dashboard, select Maintenance.

  4. On the Maintenance screen, select Backup Configuration.

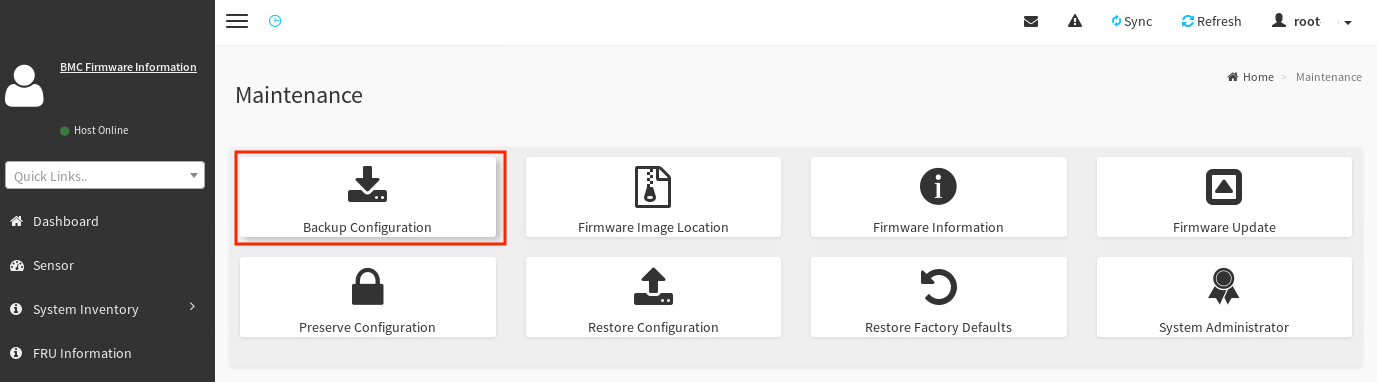

    Maintenance screen

  5. On the Backup Configuration screen, select Check All to back up all the BMC configuration details.

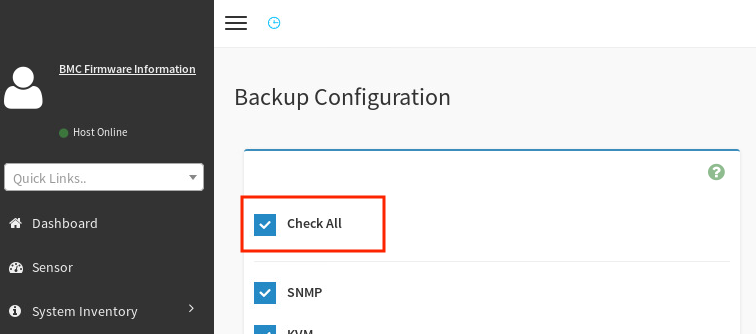

    Backup Configuration screen

  6. Click Download to save this configuration to the local system (which is accessing the BMC WebUI).

  7. Click OK to download the bmc-config.bak backup configuration file. You can use that file later if a restore is required.

2.2. Update the host module BMC firmware

After you back up the BMC configuration, you can update the SN40L-H host module’s BMC firmware while preserving the configuration. Follow these steps:

  1. Download the DataScale SN40L-H host module’s BMC patch update from the SambaNova Support portal to the local system that is accessing the BMC WebUI.

  2. Unzip the SambaNova patch update to a directory on the local system.

  3. On the Backup Configuration screen, select Maintenance in the left pane.

  4. On the Maintenance screen, select Preserve Configuration.

    Maintenance screen

  5. In the Preserve Configuration screen, select Check All at the top of the list to preserve the configuration of everything.

    The following message appears if the configuration preservation was successful.

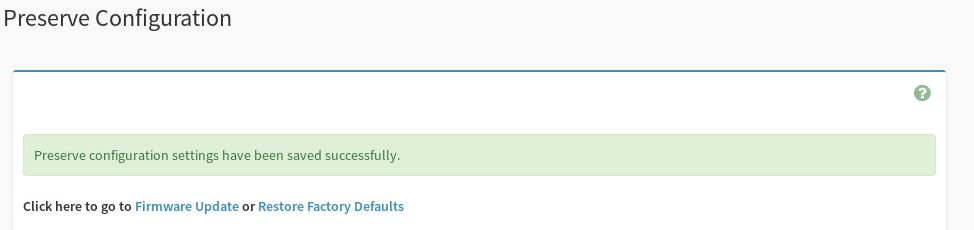

    Success message

  6. In the left pane, click Maintenance and select Firmware Update in the Maintenance screen.

  7. Find the rom.ima_enc file:

    1. In the Firmware Update screen, click Browse.

    2. Navigate to the .bin file that you downloaded and unzipped. This file is located in the /SN40L rack/<version>/HostBMC_FW/ directory from the unzipped patch bundle.

    3. Select the rom.ima_enc file and click Open.

  8. Back in the Firmware Update screen, click Start firmware update.

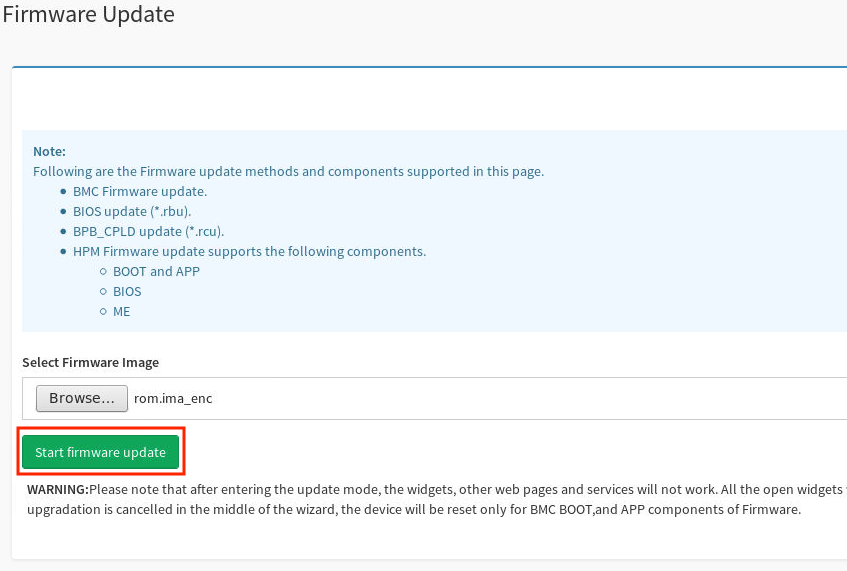

    Firmware Update screen

  9. Below the the button that you just clicked, select the Preserve all Configuration checkbox to use the preserved configuration you saved.

    Preserve all Configuration

  10. Scroll to the bottom of the screen and click Proceed to Flash.

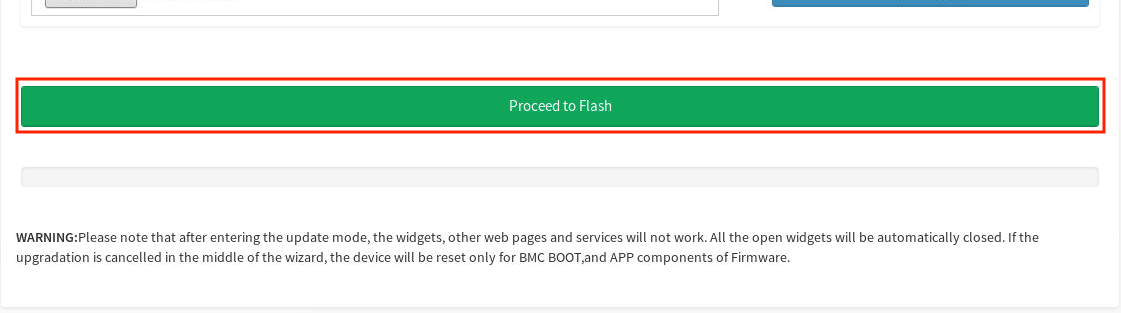

    Proceed to Flash

  11. Click OK in the BMC update confirmation screen.

    When the BMC update process has started, the BMC is not reachable for 5 to 10 minutes while the update is being applied. The DataScale SN40L-H host module OS continues to run normally during the BMC update.

  12. After 10 minutes, repeat step 2 to log in to the BMC WebUI and check the information in the upper left to confirm that the update was successful. The BMC firmware version is identified as <XX.XX.X>.

    BMC firmware version

3. Update the DataScale SN40L-H host module BIOS

Ensure the update process is not interrupted! When you enter the update mode, all open widgets are closed automatically and other web pages and services no longer work. If you cancel the upgrade in the middle of the process, the SN40L-H host module will be reset only for the BMC BOOT and APP components of the firmware.
The SN40L-H host module BIOS update requires a reboot of the system to apply the updated BIOS. Plan accordingly.

To update the SN40L-H host module BIOS, your system must meet the following requirements:

  • Access to the DataScale SN40L-H host module’s BMC via the access network

  • One of the following supported web browsers:

    • Chrome (latest version)

    • Firefox (latest version)

Follow these steps to perform the update:

  1. Open a web browser and enter the IP address of the SN40L-H host module’s BMC in the browser’s address bar.

  2. Enter your user credentials, and click Sign me in.

  3. In the dashboard, select Maintenance.

  4. In the Maintenance screen, select Firmware Update.

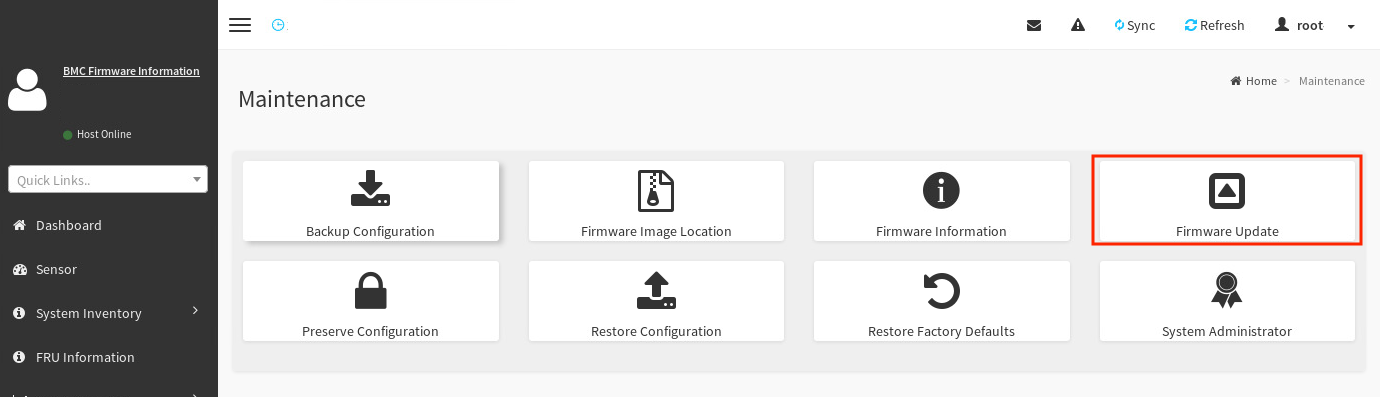

    Maintenance screen

  5. Find the image.RBU file:

    1. In the Firmware Update screen, click Browse.

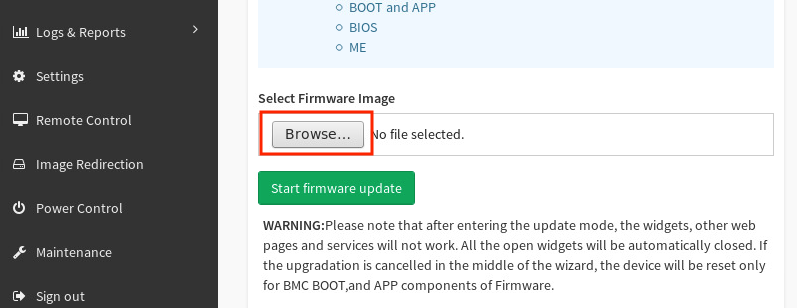

      Firmware Update screen

    2. Navigate to the /Host_BIOS/RBU/ directory of the uncompressed infrastructure patch bundle.

    3. Select the image.RBU file and click Open.

  6. Back in the Firmware Update screen, click Start firmware update.

    Firmware Update screen

  7. Below the Start firmware update button, select BIOS from the Update Type drop-down.

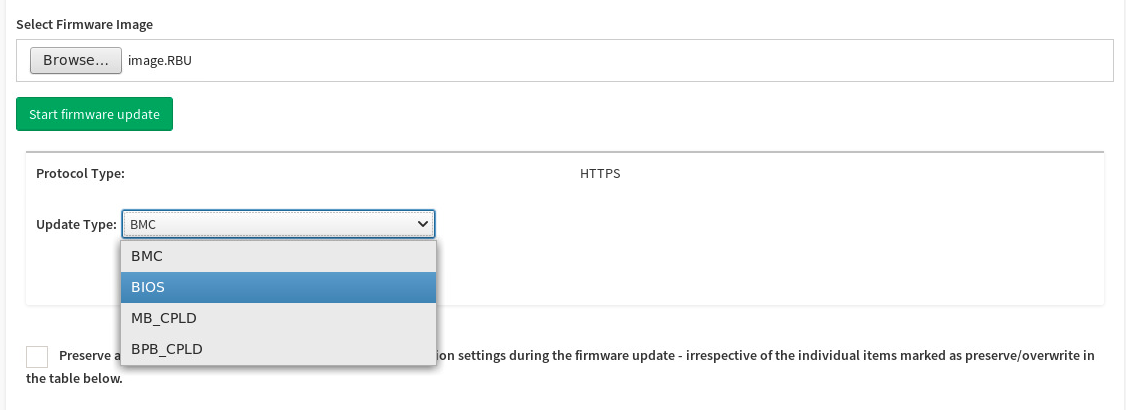

    Update Type drop-down

  8. Click Proceed to Flash and click OK.

    This initiates uploading the BIOS firmware update to the DataSale SN40L-H host module, but it does not automatically apply the firmware update.

  9. When the screen shows Uploading 100%, click Flash BIOS to initiate the BIOS update process.

    Flash BIOS button

  10. When the flash process is complete, a “firmware image has been updated successfully” message appears. Click OK to continue.

  11. A "Firmware reset has been called" message appears. Click OK to log out of the SN40L-H BMC WebUI and follow the steps in Section 3.1 to reset the host model OS.

3.1. Reset the host module OS

As a final step, you have to reset the host module OS.

  1. After you are logged out of the SN40L-H BMC, log in to the SN40L-H OS.

    $ ssh snuser1@<SN40L-H_OS_IP_Address>
snuser1@<SN40L-H_OS_IP_Address>’s password: <snuser1 Password>

  2. From the command line, reset the SN40L-H OS to complete the BIOS update.

    $ sudo shutdown -r now
[sudo] password for snuser1: <snuser1 Password>

  3. When the SN40L-H host module is back online, confirm that the BIOS update has been applied, as follows:

    1. Log in to the SN40L-H BMC and select Maintenance from the left pane of the dashboard.

    2. In the Maintenance screen, select Firmware Information.

      Maintenance screen

    3. Check the BMCFirmware Information section and the BIOS Firmware Information to confirm that the upgrade was successful.

      BMCFirmware Information screen

4. Recover the DataScale SN40L-H BMC

If the DataScale SN40L-H host module’s BMC is no longer responding or no longer accessible, or the DataScale SN40L-H host module’s BMC password has been lost or forgotten, see Backing up and restoring components.
